Description
MRBF (Marine Rated Battery Fuse) are a convenient on-battery fuse solution that provide complete protection for over-current and short circuit situations*. The fuse holders have a 10mm hole to be bolted to a battery terminal. The fuse outlets are M8 threads. The holders can also be mounted to your battery isolation switch. The double holder can have one outlet feeding your inverter with a high rating fuse, and a lower rated fuse feeding your distribution block catering to DC-DC, MPPT or Mains Chargers and accessory loads.

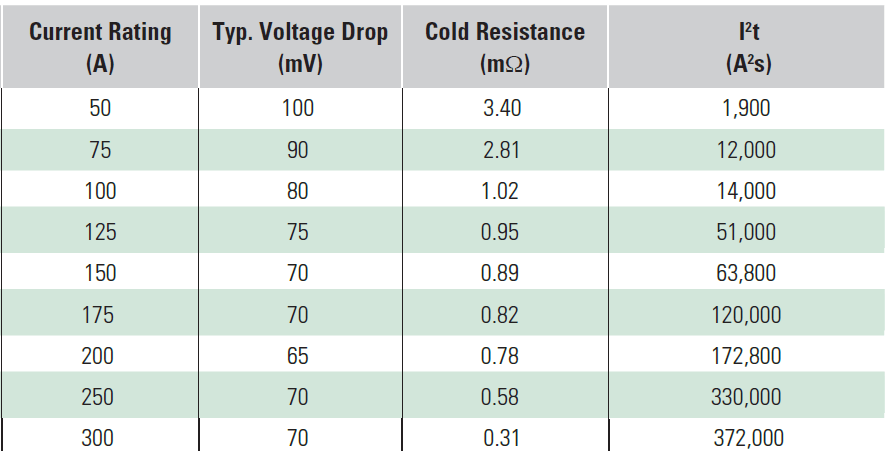

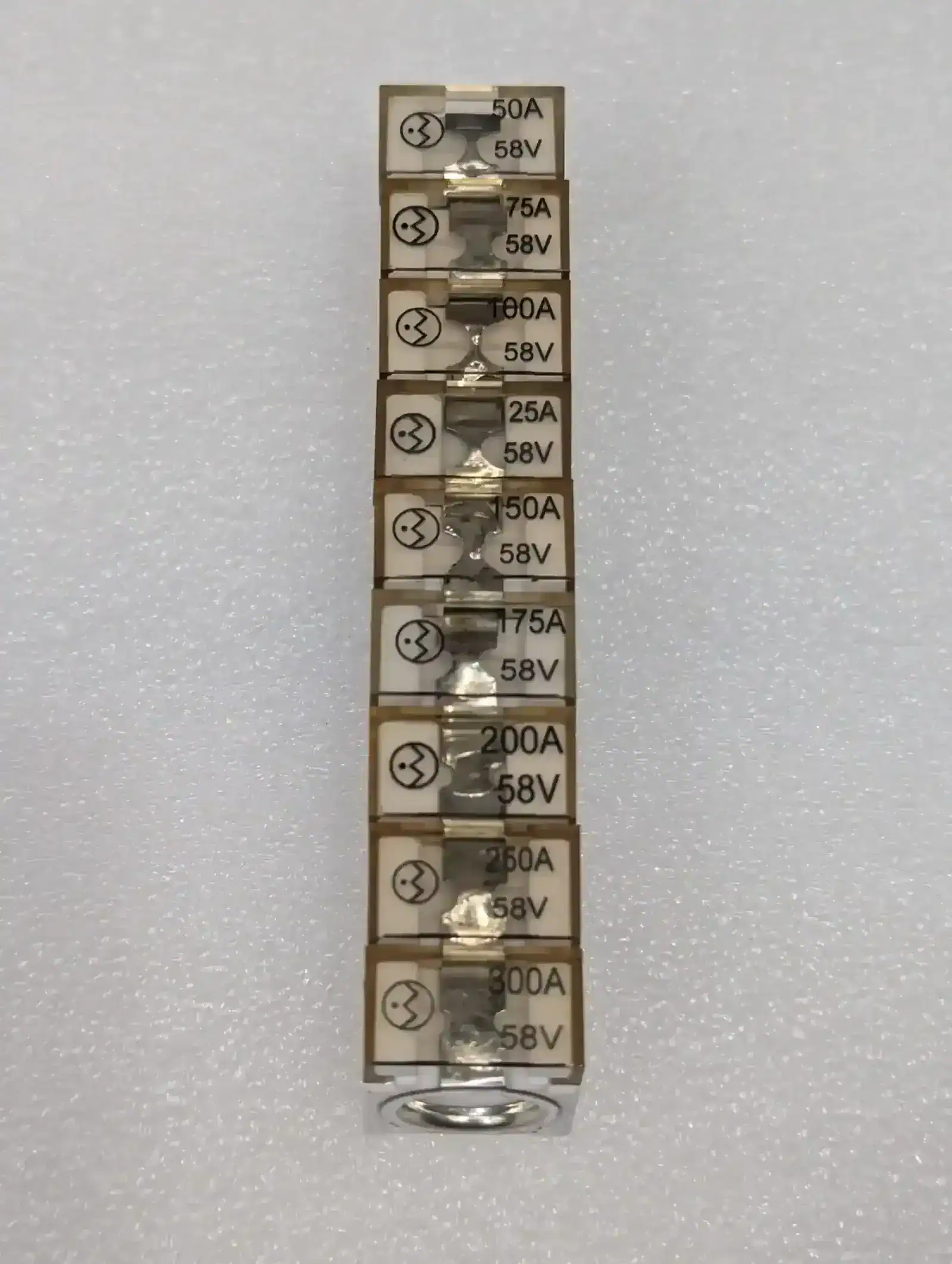

We stock fuse ratings in 50A, 75A, 100A, 125A, 150A, 175A, 200A, 250A and 300A.
These fuses are not the waterproof variety, but they will suit the majority of installations in a clean and dry environment.
Not sure which fuses fit which holders? Check our MRBF fuse compatibility guide for the full breakdown.
* Note – Fusing is for malfunction/misuse protection. It may not prevent damage to a battery BMS. Fuse ratings should be sized to the cable used from the fuse to the device. If you are unsure of required ratings, please seek professional assistance.
* PowerPaul non-waterproof MRBF fuses are suitable for PowerPaul MRBF fuse holders. Fuses may not fit Bussmann, Eaton etc brands.
